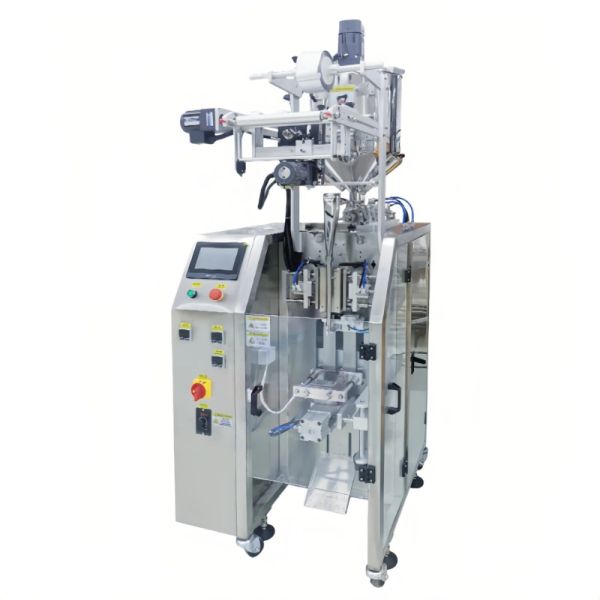

QNLP-HT30 Automatic Liquid & Paste Packaging Machine | Fully Custom Bag Size & Bag Style
The QNLP-HT30 automatic small-dose liquid and paste packaging machine is a highly flexible, multi-functional sealing equipment engineered for customized small-batch packaging production. Specially built for liquid and paste materials, this versatile three-side sealing packaging machine stands out in the industry for its fully customizable bag sizes and diverse tailor-made bag styles. It delivers precision metering, leak-proof sealing and aesthetic packaging results, becoming the ideal personalized packaging solution for brands pursuing unique product appearance and diversified specifications.
The core advantage of this machine lies in its all-round customizable packaging capability to meet unique brand and production requirements. It supports unlimited personalized customization of bag length and width, with an ultra-flexible size range from 10mm to 1500mm in bag length and 10mm to 600mm in bag width, adapting to ultra-small sachets to large-size pouches. In addition to size customization, it provides rich optional bag types to match different market positioning, including nipper-shaped rounded corner bags, long back seal bags, tooth-shaped back seal round corner bags and customized standard round corner pouches.
It covers multiple mainstream sealing styles such as standard three-side sealing, rounded-corner three-side sealing and rounded-corner four-side sealing, and also supports customized self-standing bags with rounded corners. Whether you need simple daily packaging or high-end exquisite personalized pouch shapes, this single machine can complete all customized production, helping brands differentiate their products and enhance shelf competitiveness perfectly.
Beyond flexible customization, the machine guarantees professional packaging quality for liquid and paste materials. Equipped with customizable precision pumping systems adapted to different material viscosities, it achieves ultra-accurate metering within the 10–40g (0.6–33ml) range. The professional anti-pinch material design effectively avoids material extrusion and waste during sealing, while the optimized structural technology ensures zero leakage and clean packaging results. The equipment is designed for easy disassembly and cleaning, greatly reducing daily maintenance workload and ensuring hygienic production for liquid and paste products.
Adopting a stable reciprocating film pulling structure and reinforced integrated bag former, the machine realizes fixed-position film conveying with stable operation, completely avoiding wrinkled and deformed bags. Every finished pouch features neat edges, three-dimensional shape and exquisite appearance. The intelligent microcomputer operation screen features a user-friendly interface and simple operation logic, enabling deviation-free stable running and fast parameter adjustment without professional technical support.
Compatible with aluminum foil packaging film, the machine runs stably at a speed of 20–40 bags per minute. Powered by 5kw 220V stable power, the 300kg compact body saves workshop space while maintaining long-term stable operation. Integrating personalized customization, high precision, leak-proof performance and easy maintenance, the QNLP-HT30 liquid and paste packaging machine is a cost-effective customized packaging equipment for diversified and high-standard production needs.
Features:
1. High precision measurement
Customize different pumps to measure according to your materials, ensuring high measurement accuracy and no material leakage.

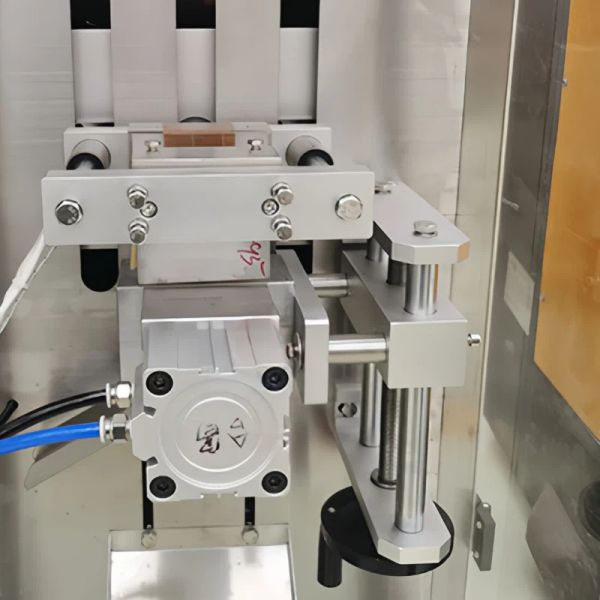

2. Pull film structure
Reciprocating and stable membrane pulling structure, fixed position membrane walking, ensuring beautiful bag shape.
3. Microcomputer operation screen
Easy to operate, user-friendly, intelligent operation, and deviation free operation.

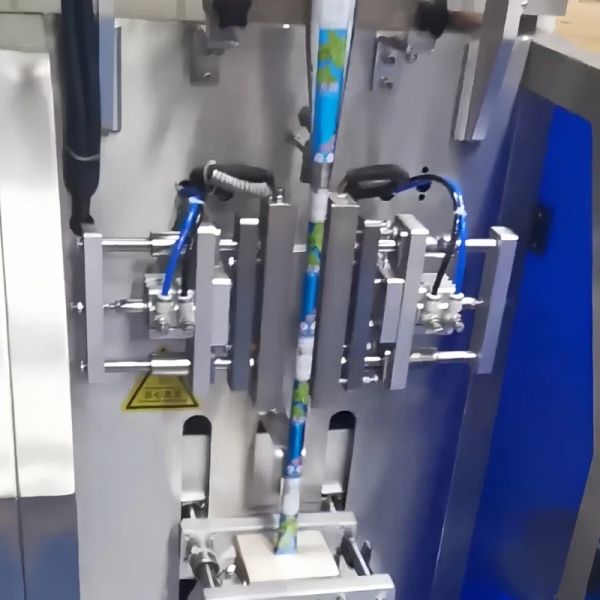

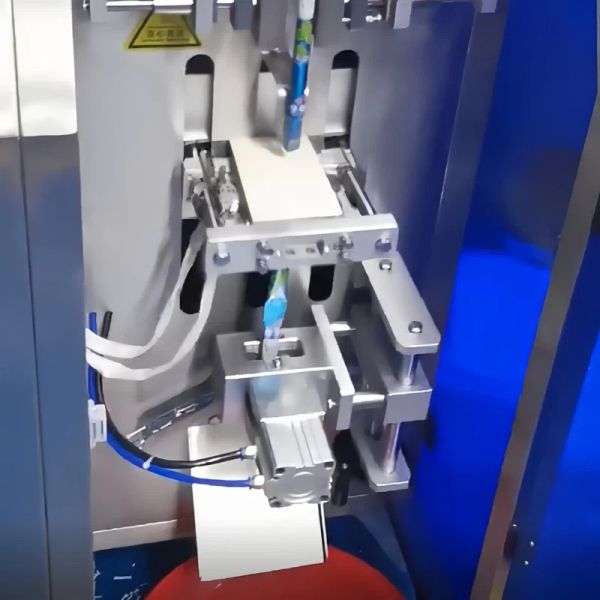

4. Bag former
From film rolling to bag forming, the structure is sturdy, making the bag shape beautiful and stable to operate.
Technical parameters:
|
Model
|
QNLP-HT30
|
|
Bag length
|
10-1500mm
|
|
Bag width
|
10-600mm
|
|
Film width
|
30-100mm
|
|
Packing speed
|
20-40bags/min
|
|
Dimension
|
900*700*1700mm
|
|
Weight
|
300kg
|
|
Power
|
AC220V 50Hz 5kw
|
|
Film material
|
Aluminum foil
|
